基于.NET8实现WinFrom应用窗口自动缩放功能

发布: 2025年 2月 25日 124阅读

1. git地址

基于.net8 的winfrom应用

gitee.com/mtoooo/win-from-window-adaptive-demo

2. 核心方法

winfrom页面控件列表及层级关系

顶部控件 panel1 = new Panel();

顶部控件添加

  • 二级控件groupBox1 = new GroupBox();
  • 二级控件groupBox2 = new GroupBox();
  • 二级控件groupBox3 = new GroupBox();
  • 二级控件groupBox4 = new GroupBox();
    • 三级控件label1 = new Label();
    • 三级控件label2 = new Label();

控件核心方法及属性

父级节点绑定子级节点Parent.Controls.Add(Child)

子节点设置Anchor属性TopBottomLeftRight

多层遍历,根据窗口调整控件大小

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
int normalWidth = 0;
int normalHeight = 0;
//需要记录的控件的位置以及宽和高（X，Y，Widht,Height）
Dictionary normalControl = new Dictionary();
private void Form1_Load(object sender, EventArgs e)
{
    //记录相关对象以及原始尺寸
    normalWidth = this.panel1.Width;
    normalHeight = this.panel1.Height;
    //通过父控件Panel进行控件的遍历
    foreach (Control item in this.panel1.Controls)
    {
        normalControl.Add(item.Name, new Rect(item.Left, item.Top, item.Width, item.Height));
    }
}
private void Form1_SizeChanged(object sender, EventArgs e)
{
    //根据原始比例进行新尺寸的计算
    int w = this.panel1.Width;
    int h = this.panel1.Height;

    foreach (Control item in this.panel1.Controls)
    {
        int newX = (int)(w * 1.00 / normalWidth * normalControl[item.Name].X);
        int newY = (int)(h * 1.00 / normalHeight * normalControl[item.Name].Y);
        int newW = (int)(w * 1.00 / normalWidth * normalControl[item.Name].Widht);
        int newH = (int)(h * 1.00 / normalHeight * normalControl[item.Name].Height);
        item.Left = newX;
        item.Top = newY;
        item.Width = newW;
        item.Height = newH;
    }
}

3. 全部代码

Form1.cs

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
namespace WinFormsApp6
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
            //this.Load += Form1_Load;
            //this.SizeChanged += Form1_SizeChanged;
        }
        private void button1_Click(object sender, EventArgs e)
        {
        }
        private void textBox2_TextChanged(object sender, EventArgs e)
        {
        }
        private void textBox1_TextChanged(object sender, EventArgs e)
        {
        }
        private void label20_Click(object sender, EventArgs e)
        {
        }
        private void comboBox6_SelectedIndexChanged(object sender, EventArgs e)
        {
        }
        private void comboBox4_SelectedIndexChanged(object sender, EventArgs e)
        {
        }
        private void groupBox4_Enter(object sender, EventArgs e)
        {
        }
        private void groupBox3_Enter(object sender, EventArgs e)
        {
        }
        private void groupBox5_Enter(object sender, EventArgs e)
        {
        }
        private void dataGridView1_CellContentClick(object sender, DataGridViewCellEventArgs e)
        {
        }
        private void groupBox1_Enter(object sender, EventArgs e)
        {
        }
        int normalWidth = 0;
        int normalHeight = 0;
        //需要记录的控件的位置以及宽和高（X，Y，Widht,Height）
        Dictionary normalControl = new Dictionary();
        private void Form1_Load(object sender, EventArgs e)
        {
            //记录相关对象以及原始尺寸
            normalWidth = this.panel1.Width;
            normalHeight = this.panel1.Height;
            //通过父控件Panel进行控件的遍历
            foreach (Control item in this.panel1.Controls)
            {
                normalControl.Add(item.Name, new Rect(item.Left, item.Top, item.Width, item.Height));
            }
        }
        private void Form1_SizeChanged(object sender, EventArgs e)
        {
            //根据原始比例进行新尺寸的计算
            int w = this.panel1.Width;
            int h = this.panel1.Height;
            foreach (Control item in this.panel1.Controls)
            {
                int newX = (int)(w * 1.00 / normalWidth * normalControl[item.Name].X);
                int newY = (int)(h * 1.00 / normalHeight * normalControl[item.Name].Y);
                int newW = (int)(w * 1.00 / normalWidth * normalControl[item.Name].Widht);
                int newH = (int)(h * 1.00 / normalHeight * normalControl[item.Name].Height);
                item.Left = newX;
                item.Top = newY;
                item.Width = newW;
                item.Height = newH;
            }
        }
        private void button7_Click(object sender, EventArgs e)
        {
        }
        private void label15_Click(object sender, EventArgs e)
        {
        }
    }
    class Rect
    {
        public Rect(int x, int y, int w, int h)
        {
            this.X = x; this.Y = y; this.Widht = w; this.Height = h;
        }
        public int X { get; set; }
        public int Y { get; set; }
        public int Widht { get; set; }
        public int Height { get; set; }
    }
}

Form1.Designer.cs

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
using System.Windows.Forms;
namespace WinFormsApp6
{
    partial class Form1
    {
        private System.ComponentModel.IContainer components = null;
        protected override void Dispose(bool disposing)
        {
            if (disposing && (components != null))
            {
                components.Dispose();
            }
            base.Dispose(disposing);
        }
        #region Windows Form Designer generated code
        private void InitializeComponent()
        {
            panel1 = new Panel();
            groupBox1 = new GroupBox();
            dataGridView1 = new DataGridView();
            Column1 = new DataGridViewTextBoxColumn();
            Column2 = new DataGridViewTextBoxColumn();
            Column3 = new DataGridViewButtonColumn();
            Column4 = new DataGridViewButtonColumn();
            groupBox2 = new GroupBox();
            label6 = new Label();
            label5 = new Label();
            label4 = new Label();
            label3 = new Label();
            progressBar2 = new ProgressBar();
            label2 = new Label();
            label1 = new Label();
            progressBar1 = new ProgressBar();
            groupBox5 = new GroupBox();
            comboBox3 = new ComboBox();
            comboBox7 = new ComboBox();
            label21 = new Label();
            comboBox6 = new ComboBox();
            label20 = new Label();
            comboBox5 = new ComboBox();
            label19 = new Label();
            comboBox4 = new ComboBox();
            label18 = new Label();
            label15 = new Label();
            groupBox3 = new GroupBox();
            groupBox1.SuspendLayout();
            ((System.ComponentModel.ISupportInitialize)dataGridView1).BeginInit();
            groupBox2.SuspendLayout();
            groupBox5.SuspendLayout();
            SuspendLayout();
            //
            // panel1
            //
            panel1.Anchor = AnchorStyles.Top | AnchorStyles.Bottom | AnchorStyles.Left | AnchorStyles.Right;
            panel1.Location = new Point(0, 0);
            panel1.Name = "panel1";
            panel1.Size = new Size(200, 100);
            panel1.TabIndex = 0;
            //
            // groupBox1
            //
            groupBox1.Anchor = AnchorStyles.Top | AnchorStyles.Bottom | AnchorStyles.Left | AnchorStyles.Right;
            groupBox1.Controls.Add(dataGridView1);
            groupBox1.Location = new Point(6, 12);
            groupBox1.Name = "groupBox1";
            groupBox1.Size = new Size(800, 256);
            groupBox1.TabIndex = 0;
            groupBox1.TabStop = false;
            groupBox1.Text = "groupBox1";
            groupBox1.Enter += groupBox1_Enter;
            //
            // dataGridView1
            //
            dataGridView1.Anchor = AnchorStyles.Top | AnchorStyles.Bottom | AnchorStyles.Left | AnchorStyles.Right;
            dataGridView1.AutoSizeColumnsMode = DataGridViewAutoSizeColumnsMode.Fill;
            dataGridView1.BackgroundColor = SystemColors.Control;
            dataGridView1.ColumnHeadersHeightSizeMode = DataGridViewColumnHeadersHeightSizeMode.AutoSize;
            dataGridView1.Columns.AddRange(new DataGridViewColumn[] { Column1, Column2, Column3, Column4 });
            dataGridView1.Location = new Point(6, 26);
            dataGridView1.Name = "dataGridView1";
            dataGridView1.RowHeadersVisible = false;
            dataGridView1.RowHeadersWidth = 51;
            dataGridView1.Size = new Size(785, 224);
            dataGridView1.TabIndex = 0;
            dataGridView1.CellContentClick += dataGridView1_CellContentClick;
            //
            // Column1
            //
            Column1.FillWeight = 50F;
            Column1.HeaderText = "序号";
            Column1.MinimumWidth = 6;
            Column1.Name = "Column1";
            //
            // Column2
            //
            Column2.FillWeight = 150F;
            Column2.HeaderText = "文件路径";
            Column2.MinimumWidth = 6;
            Column2.Name = "Column2";
            //
            // Column3
            //
            Column3.FillWeight = 50F;
            Column3.HeaderText = "选择";
            Column3.MinimumWidth = 6;
            Column3.Name = "Column3";
            //
            // Column4
            //
            Column4.FillWeight = 50F;
            Column4.HeaderText = "删除";
            Column4.MinimumWidth = 6;
            Column4.Name = "Column4";
            //
            // groupBox2
            //
            groupBox2.Anchor = AnchorStyles.Bottom | AnchorStyles.Left | AnchorStyles.Right;
            groupBox2.Controls.Add(label6);
            groupBox2.Controls.Add(label5);
            groupBox2.Controls.Add(label4);
            groupBox2.Controls.Add(label3);
            groupBox2.Controls.Add(progressBar2);
            groupBox2.Controls.Add(label2);
            groupBox2.Controls.Add(label1);
            groupBox2.Controls.Add(progressBar1);
            groupBox2.Location = new Point(6, 610);
            groupBox2.Name = "groupBox2";
            groupBox2.Size = new Size(800, 211);
            groupBox2.TabIndex = 1;
            groupBox2.TabStop = false;
            groupBox2.Text = "groupBox3";
            //
            // label6
            //
            label6.Anchor = AnchorStyles.Top | AnchorStyles.Bottom | AnchorStyles.Left | AnchorStyles.Right;
            label6.AutoSize = true;
            label6.Location = new Point(512, 133);
            label6.Name = "label6";
            label6.Size = new Size(22, 17);
            label6.TabIndex = 7;
            label6.Text = "25";
            //
            // label5
            //
            label5.Anchor = AnchorStyles.Top | AnchorStyles.Bottom | AnchorStyles.Left | AnchorStyles.Right;
            label5.AutoSize = true;
            label5.Location = new Point(512, 47);
            label5.Name = "label5";
            label5.Size = new Size(29, 17);
            label5.TabIndex = 6;
            label5.Text = "100";
            //
            // label4
            //
            label4.Anchor = AnchorStyles.Top | AnchorStyles.Bottom | AnchorStyles.Left | AnchorStyles.Right;
            label4.AutoSize = true;
            label4.Location = new Point(350, 133);
            label4.Name = "label4";
            label4.Size = new Size(123, 17);
            label4.TabIndex = 5;
            label4.Text = "Percent Complete：";
            //
            // label3
            //
            label3.Anchor = AnchorStyles.Top | AnchorStyles.Bottom | AnchorStyles.Left | AnchorStyles.Right;
            label3.AutoSize = true;
            label3.Location = new Point(6, 133);
            label3.Name = "label3";
            label3.Size = new Size(56, 17);
            label3.TabIndex = 4;
            label3.Text = "升级进度";
            //
            // progressBar2
            //
            progressBar2.Anchor = AnchorStyles.Top | AnchorStyles.Bottom | AnchorStyles.Left | AnchorStyles.Right;
            progressBar2.Location = new Point(6, 156);
            progressBar2.Name = "progressBar2";
            progressBar2.Size = new Size(779, 26);
            progressBar2.TabIndex = 3;
            progressBar2.Value = 25;
            //
            // label2
            //
            label2.Anchor = AnchorStyles.Top | AnchorStyles.Bottom | AnchorStyles.Left | AnchorStyles.Right;
            label2.AutoSize = true;
            label2.Location = new Point(350, 47);
            label2.Name = "label2";
            label2.Size = new Size(123, 17);
            label2.TabIndex = 2;
            label2.Text = "Percent Complete：";
            //
            // label1
            //
            label1.Anchor = AnchorStyles.Top | AnchorStyles.Bottom | AnchorStyles.Left | AnchorStyles.Right;
            label1.AutoSize = true;
            label1.Location = new Point(6, 47);
            label1.Name = "label1";
            label1.Size = new Size(56, 17);
            label1.TabIndex = 1;
            label1.Text = "下载进度";
            //
            // progressBar1
            //
            progressBar1.Anchor = AnchorStyles.Top | AnchorStyles.Bottom | AnchorStyles.Left | AnchorStyles.Right;
            progressBar1.Location = new Point(6, 70);
            progressBar1.Name = "progressBar1";
            progressBar1.Size = new Size(779, 26);
            progressBar1.TabIndex = 0;
            progressBar1.Value = 100;
            //
            // groupBox5
            //
            groupBox5.Anchor = AnchorStyles.Bottom | AnchorStyles.Left | AnchorStyles.Right;
            groupBox5.Controls.Add(comboBox3);
            groupBox5.Controls.Add(comboBox7);
            groupBox5.Controls.Add(label21);
            groupBox5.Controls.Add(comboBox6);
            groupBox5.Controls.Add(label20);
            groupBox5.Controls.Add(comboBox5);
            groupBox5.Controls.Add(label19);
            groupBox5.Controls.Add(comboBox4);
            groupBox5.Controls.Add(label18);
            groupBox5.Controls.Add(label15);
            groupBox5.Location = new Point(6, 294);
            groupBox5.Name = "groupBox5";
            groupBox5.Size = new Size(800, 284);
            groupBox5.TabIndex = 10;
            groupBox5.TabStop = false;
            groupBox5.Text = "groupBox2";
            groupBox5.Enter += groupBox5_Enter;
            //
            // comboBox3
            //
            comboBox3.Anchor = AnchorStyles.Top | AnchorStyles.Bottom | AnchorStyles.Left | AnchorStyles.Right;
            comboBox3.FormattingEnabled = true;
            comboBox3.Items.AddRange(new object[] { "00 = Automatic", "01 = By Message" });
            comboBox3.Location = new Point(132, 18);
            comboBox3.Name = "comboBox3";
            comboBox3.Size = new Size(659, 25);
            comboBox3.TabIndex = 21;
            comboBox3.Text = "00 = Automatic";
            //
            // comboBox7
            //
            comboBox7.Anchor = AnchorStyles.Top | AnchorStyles.Bottom | AnchorStyles.Left | AnchorStyles.Right;
            comboBox7.FormattingEnabled = true;
            comboBox7.Items.AddRange(new object[] { "01 = Activate", "02 = Rollback", "03 = Revert" });
            comboBox7.Location = new Point(132, 218);
            comboBox7.Name = "comboBox7";
            comboBox7.Size = new Size(659, 25);
            comboBox7.TabIndex = 25;
            comboBox7.Text = "01 = Activate";
            //
            // label21
            //
            label21.Anchor = AnchorStyles.Top | AnchorStyles.Bottom | AnchorStyles.Left | AnchorStyles.Right;
            label21.AutoSize = true;
            label21.Location = new Point(19, 226);
            label21.Name = "label21";
            label21.Size = new Size(84, 17);
            label21.TabIndex = 24;
            label21.Text = "SwicthType：";
            //
            // comboBox6
            //
            comboBox6.Anchor = AnchorStyles.Top | AnchorStyles.Bottom | AnchorStyles.Left | AnchorStyles.Right;
            comboBox6.FormattingEnabled = true;
            comboBox6.Items.AddRange(new object[] { "01 = Warning", "02 = Error", "03 = Info", "04 = Debug" });
            comboBox6.Location = new Point(132, 169);
            comboBox6.Name = "comboBox6";
            comboBox6.Size = new Size(659, 25);
            comboBox6.TabIndex = 23;
            comboBox6.Text = "01 = Warning";
            comboBox6.SelectedIndexChanged += comboBox6_SelectedIndexChanged;
            //
            // label20
            //
            label20.Anchor = AnchorStyles.Top | AnchorStyles.Bottom | AnchorStyles.Left | AnchorStyles.Right;
            label20.AutoSize = true;
            label20.Location = new Point(6, 176);
            label20.Name = "label20";
            label20.Size = new Size(96, 17);
            label20.TabIndex = 22;
            label20.Text = "MPULoglevel：";
            label20.Click += label20_Click;
            //
            // comboBox5
            //
            comboBox5.Anchor = AnchorStyles.Top | AnchorStyles.Bottom | AnchorStyles.Left | AnchorStyles.Right;
            comboBox5.FormattingEnabled = true;
            comboBox5.Items.AddRange(new object[] { "00 = All", "01 = only FOTA log", "02 = only MCU log", "03 = only MPU log", "04 = only Ethernet log" });
            comboBox5.Location = new Point(132, 118);
            comboBox5.Name = "comboBox5";
            comboBox5.Size = new Size(659, 25);
            comboBox5.TabIndex = 21;
            comboBox5.Text = "00 = All";
            //
            // label19
            //
            label19.Anchor = AnchorStyles.Top | AnchorStyles.Bottom | AnchorStyles.Left | AnchorStyles.Right;
            label19.AutoSize = true;
            label19.Location = new Point(6, 126);
            label19.Name = "label19";
            label19.Size = new Size(98, 17);
            label19.TabIndex = 20;
            label19.Text = "MPULogType：";
            //
            // comboBox4
            //
            comboBox4.Anchor = AnchorStyles.Top | AnchorStyles.Bottom | AnchorStyles.Left | AnchorStyles.Right;
            comboBox4.FormattingEnabled = true;
            comboBox4.Items.AddRange(new object[] { "00 = No Requirement", "01 = Warning", "02 = Error", "03 = Info", "04 = Debug" });
            comboBox4.Location = new Point(132, 68);
            comboBox4.Name = "comboBox4";
            comboBox4.Size = new Size(659, 25);
            comboBox4.TabIndex = 19;
            comboBox4.Text = "00 = No Requirement";
            comboBox4.SelectedIndexChanged += comboBox4_SelectedIndexChanged;
            //
            // label18
            //
            label18.Anchor = AnchorStyles.Top | AnchorStyles.Bottom | AnchorStyles.Left | AnchorStyles.Right;
            label18.AutoSize = true;
            label18.Location = new Point(14, 76);
            label18.Name = "label18";
            label18.Size = new Size(91, 17);
            label18.TabIndex = 18;
            label18.Text = "LogRecType：";
            //
            // label15
            //
            label15.Anchor = AnchorStyles.Top | AnchorStyles.Bottom | AnchorStyles.Left | AnchorStyles.Right;
            label15.AutoSize = true;
            label15.Location = new Point(9, 26);
            label15.Name = "label15";
            label15.Size = new Size(93, 17);
            label15.TabIndex = 16;
            label15.Text = "ActivateType：";
            label15.Click += label15_Click;
            //
            // groupBox3
            //
            groupBox3.Anchor = AnchorStyles.Top | AnchorStyles.Bottom | AnchorStyles.Right;
            groupBox3.Location = new Point(812, 12);
            groupBox3.Name = "groupBox3";
            groupBox3.Size = new Size(667, 809);
            groupBox3.TabIndex = 5;
            groupBox3.TabStop = false;
            groupBox3.Text = "log box";
            groupBox3.Enter += groupBox3_Enter;
            //
            // Form1
            //
            AutoScaleDimensions = new SizeF(7F, 17F);
            AutoScaleMode = AutoScaleMode.Font;
            ClientSize = new Size(1482, 833);
            Controls.Add(groupBox5);
            Controls.Add(groupBox3);
            Controls.Add(groupBox2);
            Controls.Add(groupBox1);
            Name = "Form1";
            StartPosition = FormStartPosition.CenterScreen;
            Text = "窗口自适应 Tool";
            Load += Form1_Load;
            groupBox1.ResumeLayout(false);
            ((System.ComponentModel.ISupportInitialize)dataGridView1).EndInit();
            groupBox2.ResumeLayout(false);
            groupBox2.PerformLayout();
            groupBox5.ResumeLayout(false);
            groupBox5.PerformLayout();
            ResumeLayout(false);
        }
        #endregion
        private Panel panel1;
        private GroupBox groupBox1;
        private GroupBox groupBox2;
        private GroupBox groupBox3;
        private DataGridView dataGridView1;
        private DataGridViewTextBoxColumn Column1;
        private DataGridViewTextBoxColumn Column2;
        private DataGridViewButtonColumn Column3;
        private DataGridViewButtonColumn Column4;
        private Label label2;
        private Label label1;
        private ProgressBar progressBar1;
        private Label label5;
        private Label label4;
        private Label label3;
        private ProgressBar progressBar2;
        private Label label6;
        private Label label15;
        private ComboBox comboBox3;
        private GroupBox groupBox5;
        private ComboBox comboBox4;
        private Label label18;
        private ComboBox comboBox5;
        private Label label19;
        private Label label20;
        private ComboBox comboBox6;
        private ComboBox comboBox7;
        private Label label21;
    }
}

Program.cs

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
namespace WinFormsApp6
{
    internal static class Program
    {
        /// <summary>
        ///  The main entry point for the application.
        /// </summary>
        [STAThread]
        static void Main()
        {
            // To customize application configuration such as set high DPI settings or default font,
            // see https://aka.ms/applicationconfiguration.
            ApplicationConfiguration.Initialize();
            Application.Run(new Form1());
        }
    }
}

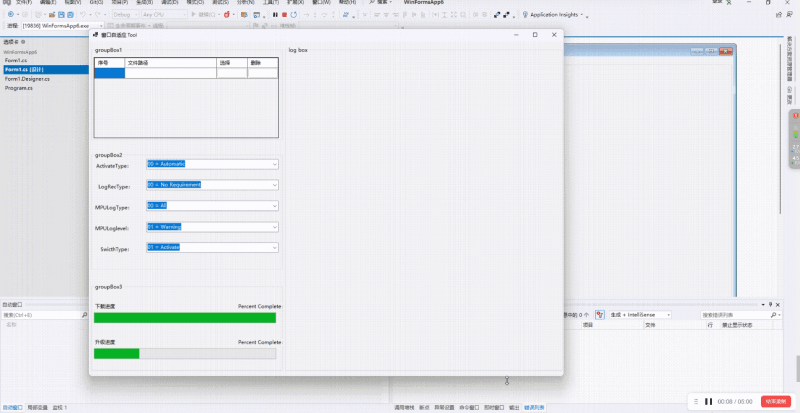

4. 显示效果

以上就是基于.NET8实现WinFrom应用窗口自动缩放功能的详细内容，更多关于.NET8 WinFrom窗口自动缩放的资料请关注IT俱乐部其它相关文章！

本文收集自网络，不代表IT俱乐部立场，转载请注明出处。https://www.2it.club/code/asp-net/14672.html
37赞
标签:
上一篇
下一篇

相关推荐

联系我们

联系我们

在线咨询: QQ交谈

邮箱: 1120393934@qq.com

工作时间：周一至周五，9:00-17:30，节假日休息

关注微信
微信扫一扫关注我们

微信扫一扫关注我们

返回顶部
