SpringBoot集成ShedLock实现分布式定时任务流程详解

发布: 2023年 4月 14日 432阅读

一、背景

在项目服务是集群部署的时候，代码在每个人都会有定时任务，但是如果让每个节点都去跑定时任务是不大合适的。SpringBoot 中的 ShedLock 可以很好解决这个问题，下面我将为大家详细介绍 SpringBoot 如何集成 ShedLock，而 ShedLock 又是如何实现分布式定时的。

二、ShedLock是什么

官方地址

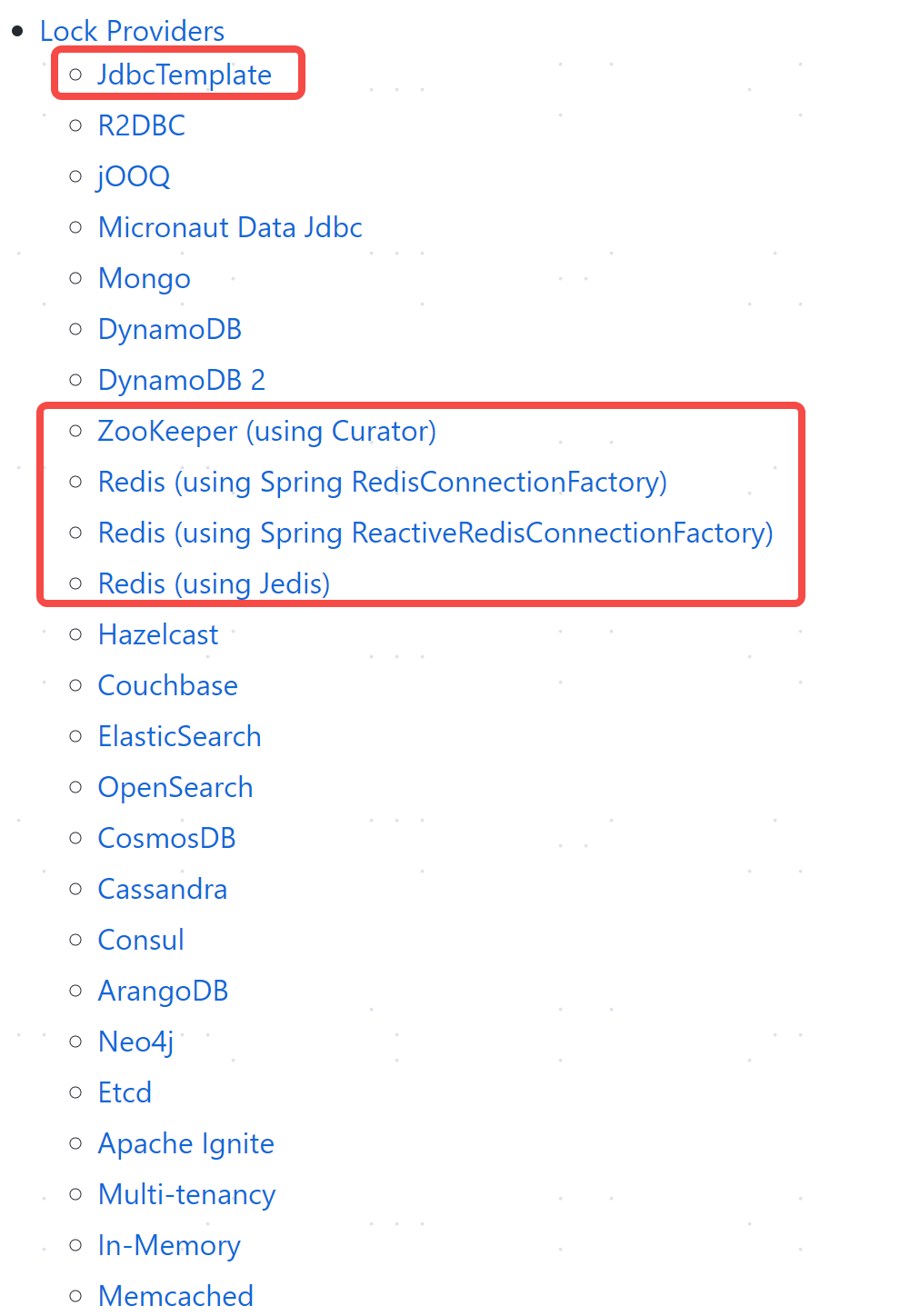

以下是ShedLock锁提供者，通过外部存储实现锁，由下图可知外部存储集成的库还是很丰富:

本篇教程我们基于JdbcTemplate存储为例来使用ShedLock锁。

三、落地实现

3.1 引入依赖包

shedlock所需依赖包：

1
org.springframework.bootspring-boot-starter-webnet.javacrumbs.shedlockshedlock-spring4.2.0net.javacrumbs.shedlockshedlock-provider-jdbc-template4.2.0org.springframework.bootspring-boot-starter-jdbcmysqlmysql-connector-javaruntime

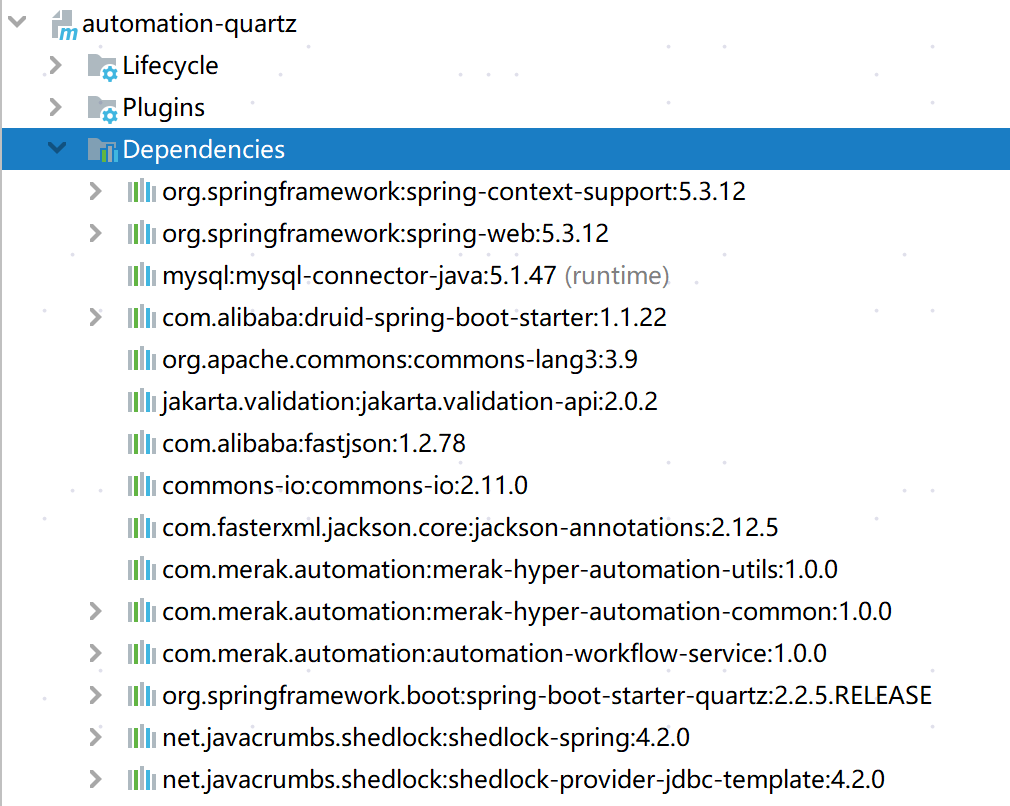

依赖包树形图：

3.2 配置数据库连接信息

server:
  port: 8105
spring:
  datasource:
    url: jdbc:mysql://127.0.0.1:3306/testjdbc?useUnicode=true&characterEncoding=UTF-8&serverTimezone=Asia/Shanghai
    username: root
    password: 123456
    driver-class-name: com.mysql.cj.jdbc.Driver
    type: com.mysql.cj.jdbc.MysqlDataSource

3.3 创建Mysql数据表

1
2
3
4
5
6
7
8
9
10
11
CREATE TABLE `shedlock` (
    `name`  varchar(64) NOT NULL COMMENT 'name' ,
    `lock_until`  timestamp(3) NULL DEFAULT NULL ,
    `locked_at`  timestamp(3) NULL DEFAULT NULL ,
    `locked_by`  varchar(255) NULL DEFAULT NULL ,
    PRIMARY KEY (`name`)
)
ENGINE=InnoDB
DEFAULT CHARACTER SET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci
ROW_FORMAT=DYNAMIC
;

3.4 配置LockProvider

ShedLockConfig.java:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
import net.javacrumbs.shedlock.core.LockProvider;
import net.javacrumbs.shedlock.provider.jdbctemplate.JdbcTemplateLockProvider;
import org.springframework.context.annotation.Bean;
import org.springframework.stereotype.Component;
import javax.annotation.Resource;
import javax.sql.DataSource;
/**
 * @description: Shedlock集成Jdbc配置类
 */
@Component
public class ShedLockConfig {
    @Resource
    private DataSource dataSource;
    @Bean
    private LockProvider lockProvider() {
        return new JdbcTemplateLockProvider(dataSource);
    }
}

springboot主启动类MerakQuartzApplication：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
import net.javacrumbs.shedlock.spring.annotation.EnableSchedulerLock;
import org.mybatis.spring.annotation.MapperScan;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.autoconfigure.security.servlet.SecurityAutoConfiguration;
import org.springframework.context.annotation.Bean;
import org.springframework.scheduling.annotation.EnableAsync;
import org.springframework.scheduling.annotation.EnableScheduling;
import org.springframework.scheduling.concurrent.ThreadPoolTaskExecutor;
import org.springframework.scheduling.concurrent.ThreadPoolTaskScheduler;
import java.util.concurrent.Executor;
import java.util.concurrent.ThreadPoolExecutor;
/**
 * @version 1.0
 * @ClassName: MerakQuartzApplication
 * @description: 工单任务调度
 */
// 开启定时器
@EnableScheduling
// 开启定时任务锁，指定一个默认的锁的时间30秒
@EnableSchedulerLock(defaultLockAtMostFor = "PT30S")
@EnableAsync
@MapperScan(basePackages = {"com.merak.hyper.automation.persist.**.mapper"})
@SpringBootApplication(scanBasePackages = {"com.merak.hyper.automation.**"}, exclude = {SecurityAutoConfiguration.class})
public class MerakQuartzApplication {
    public static final Logger log = LoggerFactory.getLogger(MerakQuartzApplication.class);
    public static void main(String[] args) {
        SpringApplication.run(MerakQuartzApplication.class, args);
    }
    private int taskSchedulerCorePoolSize = 15;
    private int awaitTerminationSeconds = 60;
    private String threadNamePrefix = "taskExecutor-";
    /**
     * @description: 实例化ThreadPoolTaskScheduler对象，用于创建ScheduledFuture> scheduledFuture
     */
    @Bean
    public ThreadPoolTaskScheduler threadPoolTaskScheduler() {
        ThreadPoolTaskScheduler taskScheduler = new ThreadPoolTaskScheduler();
        taskScheduler.setPoolSize(taskSchedulerCorePoolSize);
        taskScheduler.setThreadNamePrefix(threadNamePrefix);
        taskScheduler.setWaitForTasksToCompleteOnShutdown(false);
        taskScheduler.setAwaitTerminationSeconds(awaitTerminationSeconds);
        /**需要实例化线程*/
        taskScheduler.initialize();
//        isinitialized = true;
        log.info("初始化ThreadPoolTaskScheduler ThreadNamePrefix=" + threadNamePrefix + ",PoolSize=" + taskSchedulerCorePoolSize
                + ",awaitTerminationSeconds=" + awaitTerminationSeconds);
        return taskScheduler;
    }
    /**
     * @description: 实例化ThreadPoolTaskExecutor对象，管理线程
     */
    @Bean("asyncTaskExecutor")
    public Executor taskExecutor() {
        ThreadPoolTaskExecutor taskExecutor = new ThreadPoolTaskExecutor();
        taskExecutor.setCorePoolSize(5);
        taskExecutor.setMaxPoolSize(50);
        taskExecutor.setQueueCapacity(200);
        taskExecutor.setKeepAliveSeconds(60);
        taskExecutor.setThreadNamePrefix("asyncTaskExecutor-");
        taskExecutor.setWaitForTasksToCompleteOnShutdown(true);
        taskExecutor.setAwaitTerminationSeconds(60);
        //修改拒绝策略为使用当前线程执行
        taskExecutor.setRejectedExecutionHandler(new ThreadPoolExecutor.CallerRunsPolicy());
        //初始化线程池
        taskExecutor.initialize();
        return taskExecutor;
    }
}

3.5 创建定时Job

DigitalEmpTask：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
package com.merak.hyper.automation.quartz.task;
import net.javacrumbs.shedlock.spring.annotation.SchedulerLock;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.scheduling.annotation.Scheduled;
import org.springframework.stereotype.Component;
import java.util.List;
/**
 * @version 1.0
 * @ClassName: BizOrderTask
 * @description: 任务队列服务调度
 */
@Component
public class DigitalEmpTask {
    public static final Logger log = LoggerFactory.getLogger(DigitalEmpTask.class);
    @Scheduled(cron = "0/30 * * * * ?")
    @SchedulerLock(name = "digitalEmpTaskScheduler", lockAtMostFor = "PT25S", lockAtLeastFor = "PT25S")
    protected void digitalEmpTaskScheduler() {
        log.info("云执行调度中心1:任务开始执行,时间:" + DateUtils.dateTimeNow(DateUtils.YYYY_MM_DD_HH_MM_SS));
        try {
        } catch (Exception e) {
            log.error("云执行调度中心1调度失败，原因：" + e.getMessage());
        }
    }
}

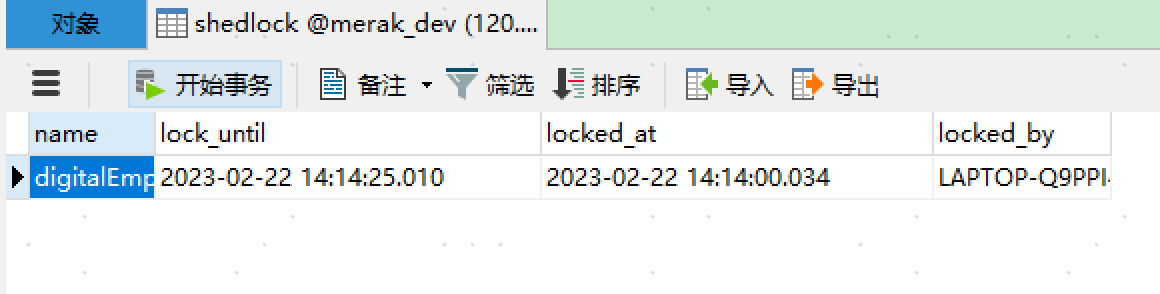

四、结果分析

1.分别启动两个服务节点，配置如下：

server:
  port: 12105
  servlet:
    context-path: /automation-quartz-one

server:
  port: 12106
  servlet:
    context-path: /automation-quartz-two

2.运行日志(片断）

节点automation-quartz-one 运行日志：
2023-02-22 12:01:00.143 [taskExecutor-1] INFO

46>46>46>46>

46>46>46>46>46>46>46>46>46>46>46>46>46>46>46>46>46>46>46>46>46>46>46>46>46>46>46>46>46>46>46>46>46>46>
